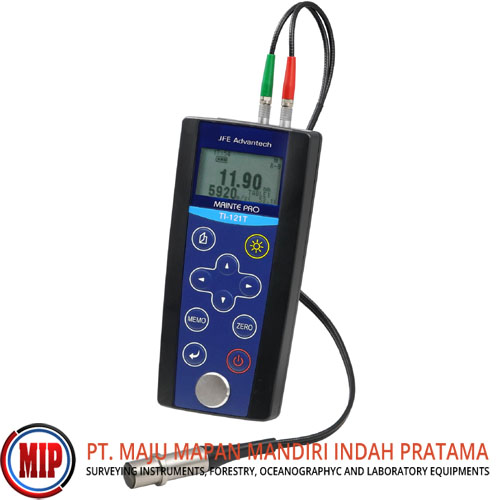

JFE ADVANTECH TI-121T Ultrasonic Thickness Gauge

Product description
Features:
You can measure the thickness of the base material by simply placing the detector over the paint.
Stores up to 10,000 data and easily manages data (can be grouped).
Connect the USB cable to transfer the measurement data to a computer.
By replacing the detector, you can measure a wide range of measures.
The difference between the standard value and the measurement values you input can display as thickness (mm) and ratio (%). Up/down alarm values are set and the buzzer will notify you.

Calculates the max, min, average, and standard deviation for each data group.
Equipped with a dedicated shipping mode and sensitivity (GAIN) switching function to ensure stable measurement of pipes, aluminum, resin, etc.

Specifications:
Measuring: Metals such as steel, stainless steel, aluminum, copper, brass, titanium, etc. Non-metallic like glass, resin, etc.
Sound speed adjustment range: 398.4 - 32.8 ft (1,000 - 1,2000 m/s).
Measurement method: Ultrasonic pulse reflection method
Usable temperature range: -5 - 50 degrees Celsius (-5 - 50 degrees C)
Humidity range: 12 - 104°F (5 - 40°C) *1
Measurement Range: When the material is made of steel plates, under coating film 0.1 - 0.8 inches (3.00 - 20.00 mm).
No coating film 1.50-90.00mm
Minimum pipe size: under 1.0 inches (27.2 mm) diameter and above, wall thickness 0.1 inches (3.00 mm) and above.
Coating film not φ1.0 inches (27.2 mm) or above, wall thickness 0.06 inches (1.50 mm) or higher
Display Unit: 0.0004 inch (0.01 mm)
Measurement error: When the measurement is made of steel plate, measuring range 0.03 - 0.39 inches (0.80 - 9.99 mm): ±0.05 mm, measurement range 10.00 - 250.0 mm: ±0.5 % rdg (reading) is the display value abbreviation for reading. )

Detector... Dedicated connector with integrated cable (cable length approx. 3.3 ft (1 m) T-type detector model 7Z10NDT-T
Outer Diameter 0.5 inch (13.0 mm), Contact Surface Diameter 0.4 inch (11.5 mm)

Standard configuration: Main unit, detector, carrying case (TI-P09), couplant, 2 AA alkaline batteries, USB cable, data processing software (CD), 0.2 inch (5 mm) adjustment test strip (included with the main unit), instruction manual (English language not guaranteed)
Power supply: 2 x AA alkaline batteries
External Dimensions / Weight: W 2.8 x H 6.1 x D 1.3 inches (70 x 155 x 33 mm); Main Unit 7.1 oz (200 g) ± 0.4 oz (10 g) Detector 1.8 oz (50 g) ± 0.4 oz (10 g).

Optional items (sold separately)
Pipe Attachment (TI-P01A), Couplant (TI-C01), Carrying Case (TI-P09)
