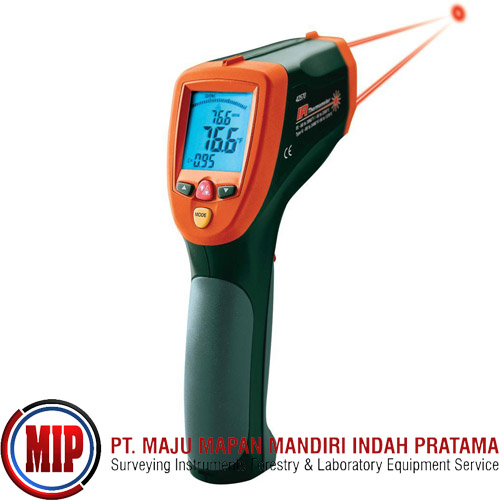

EXTECH 42570 Dual Laser Infrared Thermometer

This Dual Laser Infrared Thermometer identifies the IR temperature where the dual laser converges into a single spot at approximately 50 inches from the target. Meter features fast 100 millisecond response times, Type K input, and a USB interface. Adjustable emissivity increases measurement accuracy for a variety of surfaces. Adjustable high/low set points with audible alarm alerts you when the temperature exceeds programmed set points. Featuring MAX/MIN/AVG/DIF measurements that displays the highest, lowest, average, and MAX minus MIN values. Comes complete with Type K temperature probe, USB cable and software, carrying case and 9-volt battery.



Features

High 50:1 distance to target ratio measures smaller surface areas at greater distances

Dual Laser Targeting indicates ideal measuring distance when two laser points converge to 1" target spot

IR Temperature range: -58 to 3992°F (-50 to 2200°C)

Type K thermocouple input from -58 to 2498°F (-50 to 1370°C)

White backlit multifunction LCD display with bargraph

Fast 100 millisecond response time

MAX/MIN/AVG/DIF feature displays highest, lowest, average, and MAX minus Min values

Adjustable emissivity increases measurement accuracy for different surfaces

Adjustable High/Low set points with audible alarm alerts user when temperature exceeds the programmed set points

USB interface

Double molded housing

Complete with Type K Temperature probe, USB cable and software, carrying case and 9V battery



Specification

Specifications Range

Laser Convergence Distance 50" (127cm)

IR Range -58 to 3992°F (-50 to 2200°C)

Repeatability ±0.5% or 1.8°F/1°C

Basic Accuracy ±(1% of rdg + 2°F/1°C)

Max resolution 0.1°F/°C

Emissivity 0.10 to 1.00 Adjustable

Field of View (Distance to Target) 50:1

Type K Range -58 to 2498°F (-50 to 1370°C)

Memory Manually Store/Recall 100 readings

Dimensions/ Weight 204x155x52mm / 320g
