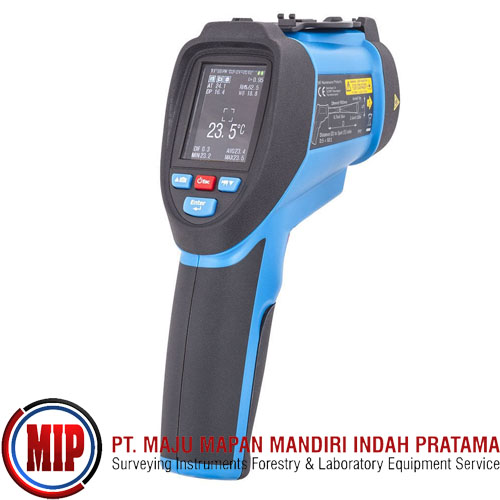

SKF TKTL40 Dual Laser Portable Infrared Thermometer

An infrared and contact temperature thermometer with video and data logging capabilities

Built-in camera allows pictures and videos, with all measurement information to be taken, stored, recalled and exported to PC
Environmental properties such as ambient, dew point and wet-bulb temperatures, as well as relative humidity, can be displayed and stored
Dual laser sighting defines the temperature measurement area
Supplied with temperature probe TMDT 2-30 (max. 900 °C (1 652 °F))for direct contact applications.
Can also be used with any other SKF temperature probe
User selectable, multiple temperature measurement modes including: maximum, minimum, average, differential and probe/infrared dual display
Data logging function can be used to visualise temperature changes over time
User selectable high and low alarm levels with audible warning signal
User selectable auto shut off feature optimises the rechargeable battery life
Temperature range using infrared: –50 to +1 000 °C (–58 to +1 832 °F)
Temperature range using probe: –50 to +1 370 °C (–58 to +2 498 °F)
Distance to spot size: 50:1
Emissivity pre-set: 0,1–1,0
Supplied in a sturdy carrying case

Specifications
Designation    TKTL 40
Display    2.2", 320 x 240 colour LCD with backlight
Displayed resolution    0,1 ° up to 1 000 °, otherwise 1 °
Emissivity setting    0,1–1,0
Backlit display    Always on
Measurement modes    Min, max, average, differential, probe/IR dual display datalogger
HVAC functionalities    Wet bulb, dew point, humidity, air temperature
Alarm modes    High and low level alarm level with audible alarm
Photo and video mode    640 x 480 camera, images (JPEG) and video (3 GP)
Memory    310 MB internal memory. Expandable using micro SD memory card (8 GB max)
PC connection    Yes, mini USB cable included
Laser pointer    2x built-in class 2 lasers, on/off
Maximum laser power    1 mW
Auto switch off    3 minutes, adjustable
Tripod Mount    1/4" BSW
Infrared temperature measurement
- Distance to spot size (D:S)    50:1
- Temperature range using infrared    –50 to +1 000 °C (–58 to +1 832 °F)
- Accuracy    20 to 500 °C: ±1 % of reading or 1 °C (1.8 °F) whichever is greater
     500 to 1 000 °C: ±1,5 % of reading
     -50 to 20 °C: ±3,5 °C (6.3 °F)
- Response time    <300 ms
- Spectral response    8–14 μm
Contact probe measurement
- Temperature using probe    –50 to +1 370 °C (–58 to +2 498 °F)
- Probe compatibility    Type K
- Probe supplied    TMDT 2-30, suitable for use up to 900 °C
(1 650 °F)
- Accuracy    0 to 1 370 °C: ±0,5 % of reading ±1,5 °C (2.7 °F)
     -50 to 0 °C: ±2,5 °C (4.5 °F)
Battery    1x Rechargeable Li-ion Battery 3,7 V 1 400 mAh 5,2 W
Operation time    4 hours continuous use
Power adapter    100V-240V 50-60Hz AC Compact Charger with Europe, USA, UK and Australian plugs
Charging time    2 hours with AC adapter
Product dimensions    205 x 155 x 62 mm (8.1 x 6.1 x 2.4 in.)
Product weight    500 g (1.1 lb)
Operating temperature    0 to 50 °C (32 to 120 °F)
Storage temperature    –10 to +60 °C (–4 to +150 °F)
Relative humidity    10 to 90% RH non-condensing
IP rating    IP 40
Case dimensions    530 x 85 x 180 mm (20.9 x 3.4 x 7.0 in.)
