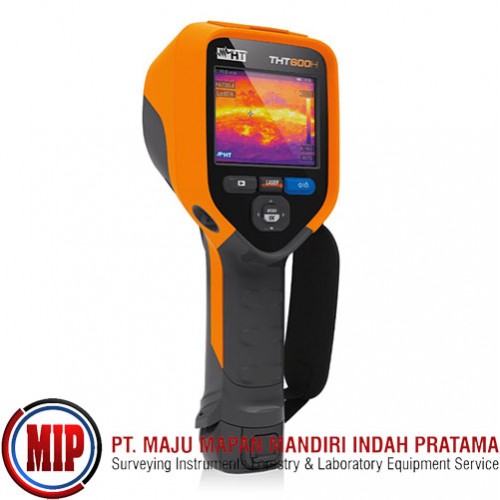

HT Instruments THT600H Advanced High Temperature Thermal Imager Camera

THT600H is the new professional thermal camera equipped with a high resolution 384x288pxl IR sensor and a specific measuring range for high temperatures -20°C ÷ 1200°C which makes it suitable for both industrial and manufacture monitoring. It features a 17.3°x 12.7° field of view, producing high resolution thermal images and videos, as well as enabling AutoFusion and Picture in Picture functions. It also has an ergonomic strap and an integrated laser distance meter, which allows you to measure the distance to the subject under analysis. The thermal imaging camera is equipped with a modern internal icon structure and a high brightness capacitive touch-screen display. Thanks to the Wi-Fi connection it is possible to download the thermograms on your mobile device and through the new and convenient HT Pro Camera application you can create PDF reports and share them quickly.

Features emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation measurement corrections. Color palettes include iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm. Features automatic, manual, and histogram span modes. Internal memory storage of 3.4 GB with expansion via included micro SD card for pictures, video, text notes and voice notes with on-camera report building.

Features:
IR Resolution: 384x288 px
Temperature range: -20 – 1200 C
Refresh rate: 50 Hz
Thermal sensitivity / NETD: <0.05°C @ 30°C / 50mK
Field of view (FOV): 17° x 12.7°
Picture in Picture function
AutoFusion image enhancement
Laser distance meter
Built-in LED light
Laser pointer

In The Box
Quick guide and downloadable manual
Headset with microphone
Calibration report
Windows software on CD-ROM
HDMI video cable
BAT8X Li-ion rechargeable batter (2 pcs)
AC/DC power supply with universal plugs
Battery charging base
Rigid carrying case
Micro SD card (16 GB)
