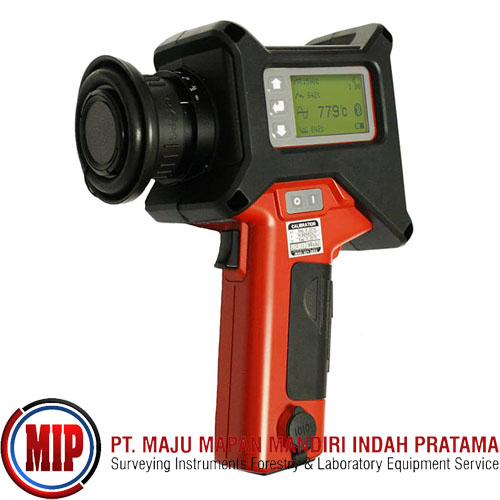

PALMER WAHL DHS520L1 High Precision Portable Infrared Thermometer

The Wahl DHS520L1 and DHS520L2 Series Heat Spy® models are high precision portable infrared thermometers, designed for accurate high temperature measurement in the range of 1022° to 5432°F (550° to 3000°C).
Features include Bluetooth® serial communications, optional data logger software on Mobile Phone or PC/Laptop, precise view of target spot with simultaneous digital display of temperature in the viewfinder, choice of operating and calculating modes, digital output and out of range alarms.

The measured temperature is displayed in four simultaneous modes: continuous, average, max, and min, with user selected mode for the viewfinder display. Temperature measurement resolution to 1°.
Accurate sighting is ensured by the clear, wide angle (9°) field of view and small, clearly defined (1/3°) measurement area. Focusing is variable from 1m to infinity, with close focus options available using auxiliary lenses. Emissivity compensation is provided via the icon based menu system.

Applications
Glass: Melt Furnace/Tank, Glass Containers
Glass Forming: Lamp/ Bulb producers, Pharmaceutical vials, Sealing (auto, comm., residential)
Steel: Coke Plant, Casting, Rolling Mill, Re-Heat Furnace
Metal Processing: Forging, Casting, Stamping, Cladding
Ceramics
Heat Treatment
Petro-Chemical
Refractories
Semi-Conductors

General Specifications
Model Number DHS520L1 DHS520L2
Neutral Density Filters 1 Filter included 2 Filters included
Temperature Range 1022° to 5432°F (550° to 3000°C)
Data Storage Internal storage of up to 9999 readings, including date & time stamp. Also, 4 routes of up to 99 readings per route.
Software PC and mobile software for logging, stored data retrieval and route management
Data Logging Wireless Bluetooth® or USB connection to PC / Laptop / Mobile with optional Data Logging Software.
Data Logging Modes Single, Latch, Burst and Route
Distance to Spot Ratio 180:1, 4:1 with optional closeup lens
Spectral Response 1 µm with advance spectral filtering
Emissivity Adjustment 0.10 to 1.20 in 0.01 step graduations
Accuracy < 0.25% (K) of reading
Repeatability ≤ 1°C / 2°F
Response Time 30 ms
Operating Temp Range 32° to 122°F (0° to 50°C)
Measuring Mode CONT, AVG, MAX & MIN
Optical System 9° Field of View with 1/3° (180:1 to 98% measurement energy) area. Eyepiece adjustable: -3.75 to +2.5 diopters
Focusing Range 39.3" / 1m to infinity. 17.7 to 24.5" / 450 to 620mm with optional8.5" / 215mm fixed focus close-up lens
Display Update Time 0.5 seconds
Output Bluetooth® or USB
Power Supply 1 9V Battery or USB
Dimensions / Weight 8.25 x 2.75 x 5.5 inches (210 x 70 x140mm) / 0.83kg/1.8lb

In The Box
Thermometer
2 Dark Glass Eye Protection Filter
Protective Lens Hood
Lens Cap
USB Cable
Wrist Strap
Battery
Manual
