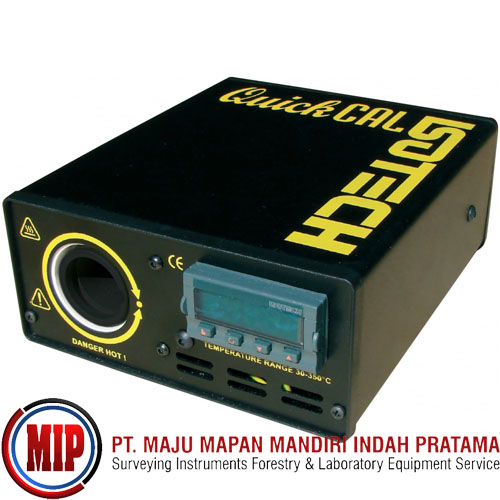

ISOTECH Quick-Cal 550 Quick-Cal R Blackbody Source

The Low Temperature Quick Cal covers the temperature range of -12°C to +140°C, making it ideal for the medical, sterilization, and food industries. The High Temperature Quick Cal covers the temperature range from 30°C to 350°C.



Both of our portable dry block calibrators have interchangeable inserts, so you don’t have to buy another calibrator each time you find a new diameter sensor to calibrate. The Low Temperature Quick Cal is particularly exciting, as it can work from a small 12 volt battery, making it truly portable. As an alternative, a mains supply is available with 100V - 240V, 50/60Hz input.



The Low Temperature Isotech Quick Cal comes complete with two inserts, one blank and one drilled to 6.8mm diameter x 120mm deep. Alternatively, we can provide pre-drilled inserts to suit your needs. Each calibration well is 13mm diameter and 120mm deep.



The High Temperature Isotech Quick Cal has a single, larger well, and interchangeable inserts, 25mm in diameter by 120mm deep. Blank and other special drillings are available to order. The High Temperature Quick Cal is supplied with 100-130 or 200-250V AC, 50/60Hz.



Model Low Temperature Quick-Cal Features

• -12°C to 140°C

• Fast calibration of temperature sensors

• 0.3°C accuracy using comparison techniques

• Light, compact, and portable

• Removable inserts to suit different diameter sensors

• Includes NIST certificate of calibration



Model High Temperature Quick-Cal Features

• 30°C to 350°C

• Fast calibration of temperature sensors

• 0.3°C accuracy using comparison techniques

• Light, compact, and portable

• Removable inserts to suit different diameter sensors

• Includes NIST certificate of calibration
