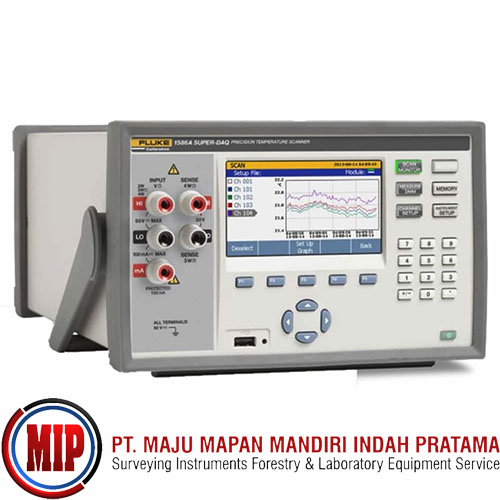

FLUKE 1586A (1586A/1HC) Super-DAQ Precision Temperature Scanner

The Fluke Calibration 1586A1HC240C Super-DAQ Precision Temperature Scanner with High-Capacity Module and Accreditation is the most accurate and flexible temperature data acquisition system on the market. It scans and records temperature, DC voltage, DC current, and resistance for up to 40 input channels and scan speeds as fast as 10 channels per second. The Super-DAQ can be configured for use as a multi-channel data logger in the factory or as a precision reference thermometer for benchtop sensor calibration in the lab.

The 1586A/1HC 240/C collects time-stamped precision temperature and electrical measurements for data analysis by technicians, engineers, and quality control personnel to verify process control, analyze interactive systems, ensure conformance to quality standards, or to correlate related events for R&D or troubleshooting. Measurement data and statistics can be viewed in tabular format for all active channels. With the graphing feature, up to four channels can be plotted at the same time, making it easy to quickly assess test setup and results before analyzing the data on a PC.

The 1586A/1HC 240/C is ideal for a number of applications such as thermal mapping, temperature validation, process sensor calibration, and more. These applications are found in a various industries including pharmaceutical, biotechnology, food processing, aerospace, and automotive.

Some temperature data acquisition applications require compliance to government and standards agency requirements. TQSoft and TQAero thermal validation software help engineers, technicians and lab managers to meet the key guidelines for temperature data collection. These software solutions provide a complete qualification, reporting, documentation, and audit trail management system.

Features:
Super-DAQ
Measure thermocouples, PRTs, thermistors, DC voltage, DC current, and resistance
Temperature measurement accuracy: Thermistors: ± 0.002 °C; PRTs: ± 0.005 °C (using external DAQ-STAQ
      Multiplexer); Thermocouples: ± 0.5 °C (using High-Capacity Module and internal CJC)
Input channels: Up to 40 isolated universal inputs
Flexible configuration: Internal High-Capacity Module and/or DAQ-STAQ Multiplexer
Selectable scan speed: Up to 10 channels per second
Four modes of operation: Scan, Monitor, Measure, Digital Multimeter (DMM)
Real-time color trending: Chart up to four channels simultaneously
Automated sensor calibration: Control Fluke Calibration temperature sources such as dry-wells or micro-baths
      for automated calibration routines
Data storage: Records up to 20 MB of data and setup files to internal non-volatile memory or to external USB
      drive Transfer data to PC using the USB drive or LAN connection and view data in Microsoft Excel
Data security: Administrator and user profiles for protecting settings and ensuring test traceability
Mx + B scaling and channel offset zero function
Alarms: Two independent, user-defined alarms for each channel indicate when an upper or lower range has been
      exceeded
High-Capacity Module
Universal input channels designed to measure temperature, resistance, DC voltage, and DC current for
      data acquisition applications on factory floors, where channel count and scan speed are important
Electronic ID with serial number and calibration date reports to 1586A Super-DAQ
Twenty 2-wire or ten 3-, or 4-wire connections
Built-in cable strain relief to help secure connections
Clear top case with embedded channel numbers for easy wiring identification
Two dedicated DC current channels
Comes with accreditation

What's In The Box:
(1) Mainframe
(1) High-Capacity Module
(1) Software
(1) Manual and CD Kit
(1) Power Cord
(1) Calibration Report and Sticker
