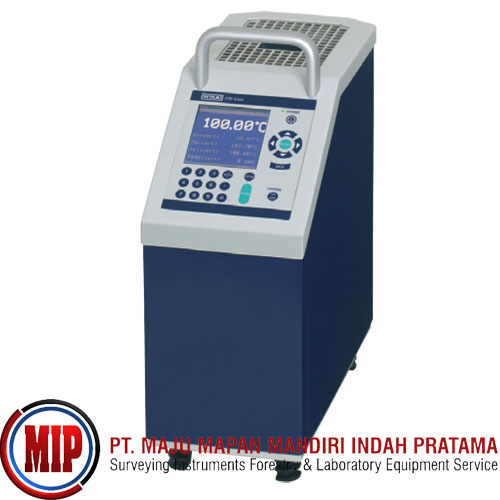

WIKA CTD9300-165 Temperature Dry Well Calibrator

The WIKA CTD9300-165 Dry Well Calibrator is designed for temperatures up to 329°F (165°C). It is primarily suitable for biotechnology, pharmaceutical and food industry applications. All instruments are fitted with blocks for large inserts, of 28 mm diameter by 150 mm long (1.1 x 5.91in).

Whether in laboratories, workshops or on site, these temperature dry-well calibrators can meet any calibration requirement. As an option, all instruments are available with an integrated measuring instrument. This enables the measurement of resistances, thermoelectric voltages and also current signals (from thermometers with a 0/4 to 20mA transmitter) and their direct display in °C. Using the calibration software and a laptop computer, fully automatic calibrations of electrical thermometers can be carried out anywhere. It is also possible to retrofit the integrable measuring instrument into existing calibrators.

Applications for the CTD9300-165 include:
Bio and pharmaceutical industries
Food industry
Demanding on-site calibrations
Measurement and control laboratories in the chemical industry
Power plants and plant construction

Features:
-31 to 329°F temperature range
Accuracy:
±0.1 K at -22 °F (-30°C)
±0.16 K at 329 °F (165°C)
0.01 K resolution
0.06 K axial homogeneity
Heating time: 12 min from 68 to 329°F
Cooling time: 7 min from 68 to -4°F
5.91in (150mm): insertion depth
Aluminum block material
RS-232 interface

What's In The Box:
(1) Temperature dry-well calibrator model CTD9300-165
(1) Power cord 1.5 m (5 ft) with safety plug
(1) Insert with 6.5 mm (0.26 in) inner diameter
(1) Replacement tools
(1) Operating instructions
(1) RS-232 interface cable
(1) Calibration software
(1) 3.1 calibration certificate per DIN EN 10204
(1) DKD calibration certificate up to 165°C
(1) Carrying case
