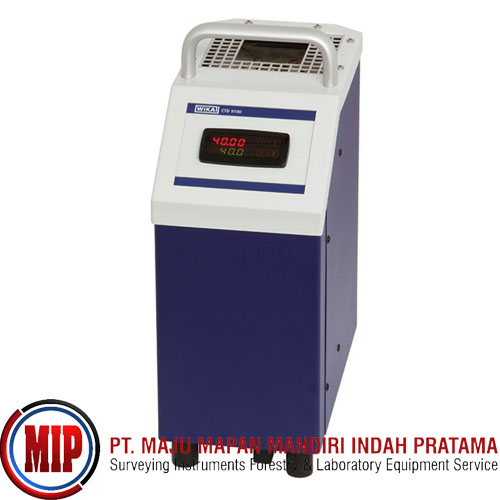

WIKA CTD9100 Temperature Dry Well Calibrator
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The The WIKA CTD9100-165 dry well calibrator is compact and lightweight, making it particularly suited for on-site calibrations. The calibrator combines a stable heat source with precision Pt100 temperature measurement. This enables industrial temperature probes to be calibrated even more efficiently. Regular monitoring of temperature probes helps to recognize failures promptly and shorten down times. The CTD9100-165 operates using Peltier elements and, as a result, can achieve testing temperatures below the ambient temperature. Due to their capacity for active cooling, they are often used in the biotechnology, pharmaceutical and food industries.
The temperature dry-well calibrators of the CTD9100 series work with temperature-controlled metal blocks and interchangeable inserts. Thermometers are fitted into the calibrator using the inserts, which can be drilled to accommodate the thermometer's diameter. The calibration temperature can be very quickly controlled by using just two buttons on the controller. The actual and set temperature of the heating block are displayed simultaneously on a large 4-digit, high-contrast LC display, which virtually eliminates reading errors. The calibrator's block design has improved temperature homogeneity at the lower range, leading to smaller measurement uncertainties. The large insertion depth of 5.91in (150mm) considerably reduces heat dissipation errors.
WIKA CTD9100-165 Dry Well Calibrator Applications
Easy on-site calibration
Power generation
Measurement and control laboratories
Machine building
Features:
104 to 842°F (40 to 450°C) temperature range
±0.3 to 0.5K accuracy
±0.05K stability up to 212°F (100°C); then ±0.1K up to 842°F (450°C)
0.01K resolution up to 212°F (100°C); then 0.1K
14 min heating time from 68 to 842°F (20 to 450°C)
60 min cooling time from 842 to 212°F (450 to 100°C)
5.91in (150mm) immersion depth
What's In The Box:
(1) Temperature dry-well calibrator model CTD9100
(1) Power cord, 1.5 m [5 ft] with safety plug
(1) Drilled standard insert, depends on instrument version
(1) Replacement tools
(1) Operating instructions
(1) 3.1 calibration certificate per DIN EN 10204
(1) Software For thermometer calibration
(1) Insert
(1) RS-485 to USB 2.0 Interface Converter
(1) Carrying Case
