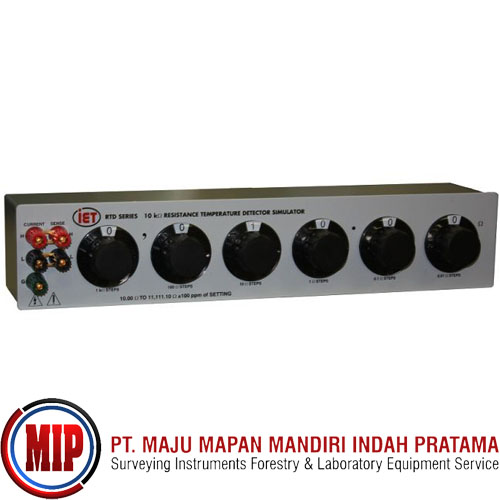

IET LABS RTD Z-6 High Accuracy RTD Simulator

Rp. 110,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

High Accuracy RTD Simulator
The RTD Simulator Series is ideal where applications of Resistance Temperature Detector (RTD) simulation require exact low value resistance without "zero" and contact resistance effects. The RTD-Z-6-.001 exhibits a resistance range of 10 Ω to 1,111.110 Ω, 1 mΩ lowest decade resolution, 50 ppm absolute accuracy. The RTD-Z-6-.01 has a 10 mΩ resolution.

If this simulator is substituted for any RTD, the rest of the system may be calibrated or examined. Special designs virtually eliminate zero resistance and switch contact variations, providing the specified absolute accuracy over the entire range.
See the PZS Series for computer controlled RTD instruments. For handheld and field use, consider the ohmSource Series.

Features:
50 ppm absolute accuracy
1 mΩ resolution
No “zero” resistance; direct setting
Highest performance RTD simulator available
Highest accuracy, highest stability, lowest TC
wide range - 10 Ω to 1111.110Ω
Virtually independent of contact resistance variation
Ideal for DIN PT-100, PT-100 ANSI, PT-50 and NI-120 systems
