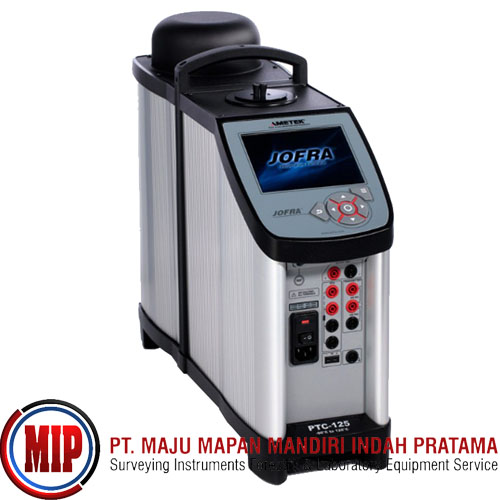

AMETEK PTC155A Temperature Calibrator

The Ametek PTC series Temperature calibrators provide precision temperature calibration of sensors, whatever the type or format. This is accomplished through an innovative active dual zone heating technology.

The JOFRA PTC-series features our well-known active dual-zone heating technology. Each heating zone is independently controlled for precision temperature calibration. The homogeneity in the lower part is close to that of a laboratory liquid bath. The lower zone ensures optimum heat dissipation throughout the entire calibration zone. The upper zone compensates for heat loss from the sensor under- test and from the open top. This design also eliminates the need for extra insulation of sensors-under-test and makes it possible to calibrate liquid-filled and other mechanical sensors.

The new USB connection provides fast and easy access to all laptops without the need of RS-232 to USB converters. Future-proof through e.g. a flash capability for easy firmware upgrades as well as already integrated LAN communication and USB host connectors for future use.

Features:
High accuracy:
±0.11°F (±0.06°C) PTC-155
±0.13°F (±0.07°C) PTC-125
±0.15°F (±0.08°C) PTC-350
±0.27°F (±0.15°C) PTC-660

Wide temperature ranges:
-130 to 257°F (-90 to 125°C) PTC-125
-13 to 311°F (-25 to 155°C) PTC-155
91 to 662°F (33 to 350°C) PTC-350
91 to 1220°F (33 to 660°C) PTC-660

Superior temperature homogeneity
Intelligent reference sensors
USB communication
High speed heating and cooling times
color display and user-friendly navigation
Switch test (with B model)
Auto-stepping

What's in the Box:
(1) PTC dry-block calibrator (user specified)
(1) Mains power cable (user specified)
(1) Traceable certificate
(1) Tool for insertion tubes
(1) Heat shield - PTC-350 and PTC-660
(1)  JOFRACAL
(1)  USB cable
(1) Set of rubber cones for insulation plugs - PTC-155
(1) Manual
(1) Probe diameter 1/8 in, 4mm reference hole
