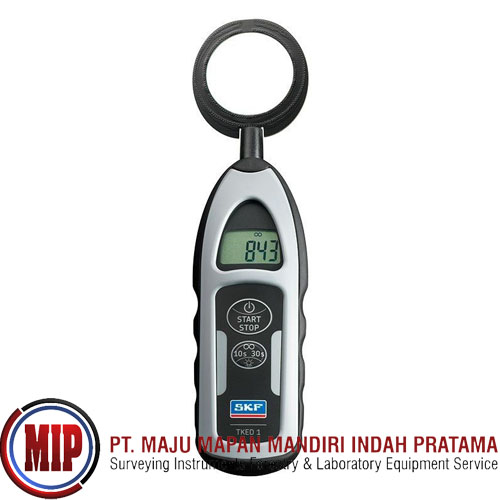

SKF TKED1 Electric Discharge Detector Pen

Rp. 28,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The SKF Electrical Discharge Detector Pen (EDD Pen) is a simple to use hand-held instrument for detecting electrical discharges in electric motor bearings. Electrical discharges are a result of motor shaft voltages discharging to earth through the bearing, causing electrical erosion, lubricant degradation and ultimately bearing failure.

Electric motors are more vulnerable to suffer electrical erosion in bearings when controlled by a Variable Frequency Drive. When incorporated into a predictive maintenance programme, the EDD Pen can help detect bearings more susceptible to failure, and significantly prevent unplanned machine downtime.

Specifications
General Specification
Power supply   4,5V – 3 x standard AAA batteries (LR03, AM4)
Time control   pre-sets   10 or 30 seconds
default   indefinite
Operational and storage temperature   0º to 50 °C (32 to 122 ºF)
-20 to 70 °C (-4 to 158 ºF)
IP level   IP 55
Display   LCD counter range: 0 to 99 999 discharges. User selectable backlight and low battery warning
Case Dimensions (w x d x h)   255 x 210 x 60mm (10 x 8.3 x 2.3 in.)
Total case and contents weight   0,4 kg (0.88 lb)
