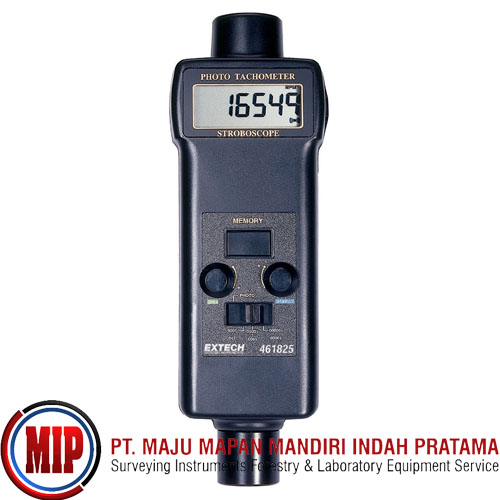

EXTECH 461825 Combination Tachometer and Stroboscope

Features:
Stroboscope course and fine flash rate adjustments to freeze and analyze rotating objects
Battery operation brings motion analysis to any location
Unique display features characters that reverse direction depending on measurement mode
Large 0.4" (10mm) 5 digit LCD display
Microprocessor based with quartz crystal oscillator to maintain high accuracy
Tachometer memory stores last, max, and min readings

A two-in-one Extech meter that comes with a stroboscope feature that allows you to measure and analyse rotating objects. It also features a tachometer gauges RPM levels.
The stroboscope coarse and fine flash rate adjustments are available through device settings/options and can be used to freeze data and analyse objects moving at high speeds.
The display is LCD and found at the top if the device, and allows the characters to reverse depending on the mode that you have chosen to set the device to (given that you use two separate sides of the device). The LCD screen is 0.4 inches in size, and is a five-digit display.

The microprocessor within the device comes with a quartz crystal oscillator which is there to ensure consistently high accuracy.
The tachometer memory built-in to the Extech 461825: Combination Photo Tachometer/Stroboscope allows you to store the last, maximum and minimum readings, meaning that you can recall this information to your screen for easy and accurate referencing. The Extech tachometer reverses to use the two different settings.

Includes:
1.5v AA batteries
Operation manual
Carrying case

General Specifications:
Circuit Custom:  LSI microprocessor based design
Display:  Reversible, 0.4" (10mm) 5-digit (99999 count) LCD display
Measurement units:  RPM (revolutions or rotations per minute)
Memory Recall:  Records/Recalls Max/Min/Last readings with memory push-button
Operating Temperature:  32 to 122°F (0 to 50°C)
Operating Humidity: < 80% RH
Power Supply:  Four 1.5V 'AA" batteries (UM-3 or equivalent)
Weight:  0.66 lb. (300g)
Dimensions:  8.5x2.6x1.5" (215x65x38mm)
Accessories:  Reflective tape and carrying case

Electrical Specifications:
Measurement Range:  5 to 99,999 RPM for the Tachometer, 100 to 100,000 FPM/RPM for the Stroboscope
Resolution:  0.1 RPM (<1000 RPM) and 1 RPM (> 1000 RPM)
Accuracy:  ± (0.1% + 2 digits)
Sampling Time: 1 second (> 60 RPM)
Photo Tachometer detection distance:  2 to 6" (50 to 150mm) typical - Note: Detection distances up to 12" (300mm) are possible depending upon ambient light
Stroboscopic Flash rate: 100 to 100,000 FPM (flashes per minute)
Stroboscopic Flash adjust range:  Range A: 100 to 1,000 FPM Range B: 1000 to 10,000 FPM Range C: 10,000 to 100,000 FPM
Stroboscopic Flash tube type:   High efficiency LED lamp
Stroboscopic Flash duration:  60 to 1000 microseconds (approx. 16% of period)
Stroboscopic Flash Color:  Orange
