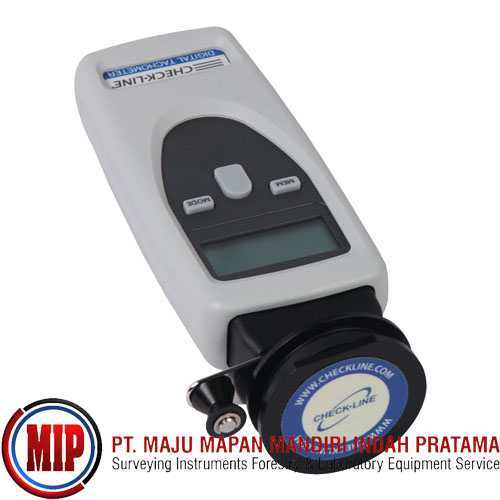

CHECKLINE CDT2000HD-TE Wire, Cable, and Rope Speed Meter

Rp. 30,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

CDT-2000HD-TE allows the device to measure speed and length of wires, cables and ropes up to 8 mm diameter, e.g.in elevator applications. The CDT-2000HD-TE is just as useful when setting up plants and machinery as during service jobs, monitoring manufacturing processes or in development laboratories. Example applications include measuring the rotational speeds of engines, pumps and turbines, as well as of mixers, centrifuges and conveyors; it can also measure the velocities and lengths of all kinds of threads, sheets and belts.

Features
Measurement of wires, cables and ropes up to 8 mm
Used for elevator applications and similar applications for measure cable speed and length
Wire Speed can be measured in feet/min, meters/min or in/min (user selectable)
Total Length can be measured in feet, meters, inches.
Wrapper roller mounted beside main roller insures adequate contact to eliminate slippage
Designed and fabricated in Germany
Includes Traceable Calibration Certificate

Complete Kit
The CDT-2000HD-TE includes the Tachometer, Wire, Cable, and Rope Speed Adaptor, Slide-In Tachometer Contact Adapter, 6" & .1m Surface Speed Wheels, Cone Tip, Funnel Tip, Extension Shaft, Reflective Tape, Two (2) AA Batteries (1.5 V), Calibration Certificate and Operating Instruction Manual -- all supplied in a foam-fitted, hard-plastic Carrying Case.
