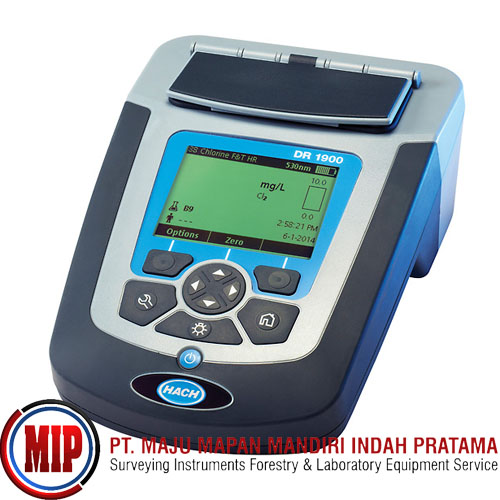

HACH DR1900 Visible Spectrophotometer

The DR1900 excels in the field because it is the lightest and most compact portable spectrophotometer. Your field testing takes you to potentially dusty and wet conditions where other equipment simply won’t be safe. The DR1900 is built for rugged conditions, and it’s flexible, --accepting the widest range of vial sizes. Built with field use in mind, the DR1900 has a large, clear screen and a simple user interface that makes testing easier than ever in even the most demanding conditions. Easy to hold, and operate, the compact DR1900 is a valuable tool for your field technicians.

Underneath the rugged exterior, the DR1900 has the largest number,-- over 220-- of the most commonly tested preprogrammed methods already built in. You can also use the easy-to-use interface to create your own methods. Tests are performed with a wavelength range of 340 to 800 nm which make this a field instrument you can use to find results typically only seen in laboratory instruments.
Please note: TNTplus vial test evaluation possible, but without barcode identification & 10 fold measurement and outlier elimination.

Carry Anywhere
Test What You Need
Ensure Accuracy in the Field
Make Testing Easier
Take Into Field Environments

Specification:
Battery Life:15 days (typical) @ 5 readings a day / 5 day week without backlight*
* Backlight usage will decrease battery life.Battery Requirements:4, AA size alkali cellsCuvette Compatibility 2:10 mm square / 1 inch square and
13 mm / 16 mm / 1 inch roundData Logger:500 measured values (Result, Date, Time, Sample ID, User ID acc. to GLP)Detector:Silicon photodiodeDimensions (H x W X D):98 mm x 178 mm x 267 mmDisplay:Graphical display 240 x 160 pixel (LCD, b/w, backlit)Enclosure Rating:IP67Includes:Printed Basic Manual, CD with procedure manual (English) in pdf format. Set of vial adapter in carton box. Pkg of 4 AA Alkaline Battery. Dust CoverMains Connection 2:110 to 240 V / 50/60 Hz (* optional Module required. May not be available in all regions)Mains Connection 3:4x NiMH rechargeable Battery (* optional Module required. May not be avaliable in all region)Operating Conditions:10 to 40 °C (50 - 104 °F), max. 80 % relative humidity (non-condensing)Operating Humidity:max. 80 % relative humidity (non-condensing)Operating Mode:Transmittance (%), Absorbance and ConcentrationOperating Temperature:10 to 40 °COptical System:Reference beam, spectralPhotometric Accuracy:± 0.003 Abs @ 0.0 - 0.5 AbsPhotometric Linearity:< 0.5 % (0.5 - 2.0 Abs)Photometric Measuring Range:0 to 3 Abs (wavelength range 340 – 800 nm)Power supply:4 x AA size Alkaline
4x NiMH rechargeable Battery*
Power supply*: 110 - 240 V; 50/60 Hz
(* optional Module required.
May not be available in all regions)Preprogrammed Methods:> 220 (Please note: TNT vial test evaluation possible, but without barcode reading & 10 fold measurement and outlier elimination feature.)Reproducibility:± 0.005 Abs (0 - 1 A)Sample Cell Compatibility:13 / 16 mm and 1 inch round adapter, 10 x 10 mm 1 inch square and 10x10mmSource Lamp:Xenon FlashSpectral Bandwidth:5 nmStorage Conditions:-30 to 60 °C (-22 to 140 °F), max. 80 % relative humidity (non-condensing)Stray Light:< 0.1 %T at 340 nm with NaNO2Temperature Range:0 to 50 °C (32 - 122 °F)User Interface Languages:English, French, German, Italian, Spanish, Portuguese, Bulgarian, Chinese, Czech,
Danish, Dutch, Finnish, Greek, Hungarian, Japanese, Korean, Polish, Romanian,
Russian, Slovenian, Swedish, TurkishUser Programs:50Wavelength Accuracy:± 2 nm (range 340 - 800nm)Wavelength Calibration:AutomaticWavelength Range:340 to 800 nmWavelength Reproducibility:± 0.1 nmWavelength Selection:AutomaticWeight:3.31 lbs. (1.5 kg)
