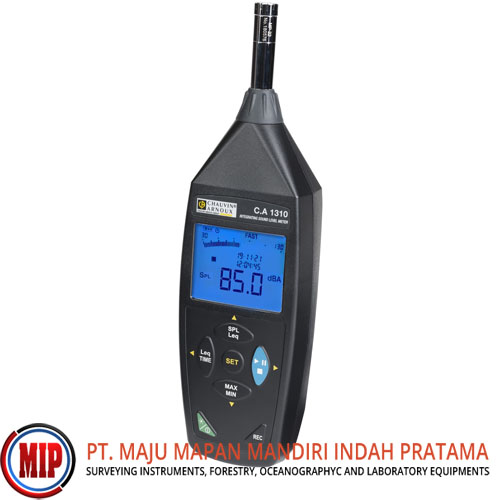

CHAUVIN ARNOUX CA1310 Class 2 Sound Level Meter Data Logger

Chauvin Arnoux CA 1310 [P01651030] Sound Level Meter Data Logger (Class 2), 30 - 130 dB 20 Hz - 8 kHz. The integrated sound level meter C.A 1310 is used for the simple measurement of the noise level in every environment: Outdoors, in a plant, in offices, etc. with the C.A 1310 you can immediately know whether the noise level in your environment is permissible or exceed limit values. It complies with the standards IEC 61672-1 type 2 and ANSI S1.4 type 2 for sound level meters.

The C.A 1310 is a portable, compact device that can be operated with one hand and mounted on a photo stand for long-term measurements. Its ergonomic housing fits well in the hand and the large display is optimally readable. The sound level meter enables the measurement of sound levels from 30 to 130 dB and their recording with a storage capacity of up to 64,000 measuring points. The user can use 4 measured values for the measurement: SPL (sound pressure level), Leq (equivalent continuous sound level), MaxL (maximum sound level) and MinL (minimum sound level). The equivalent continuous level can be integrated for fluctuating sound levels over periods of 10 seconds to 24 hours. It has 2 evaluation curves A and C, which take into account the sensitivity of the human ear depending on the frequency. Curve A is the curve for general applications in industrial environments, curve C is particularly suitable for the presence of low frequencies. With the help of the standard supplied SL software, the measured data can be displayed as a table or graphically. It also enables data export and real-time mode.

Part Number: P01651030
Measurement range : 30.0 to 130.0 dB
Frequency range : 20 Hz to 8 kHz
Compliance IEC 61672-1 : Class 2 / ANSI S1.4 Type 2
Measurement of the equivalent continuous sound level Leq
Storage of up to 64,000 measuring points
Software for data evaluation supplied as standard
Large, illuminated display with digital display and bar graph
Detachable microphone with extension cable as an accessory

Include:
(1) CA 1310 - Sound Level Meter Data logger
(1) Hard case
(4) Batteries
(1) Foam wind-shield
(1) Software on CD-Rom
(1) Male Jack socket
(1)  User’s Manual
(1) Verification Certificate
