SVANTEK SV103 Vibration Dosimeter
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

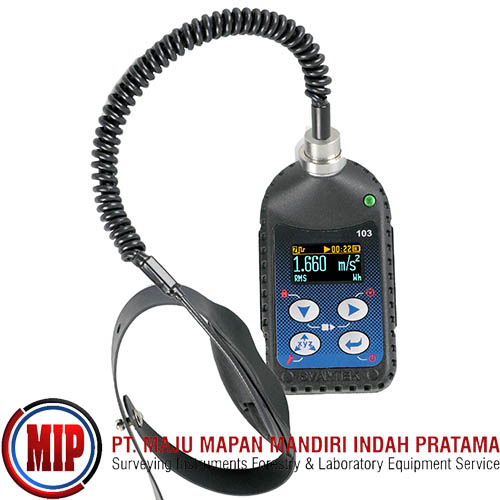

SV103 Vibration Dosemeter
This is the first ever personal hand-arm vibration exposure meter. It has been intricately designed with the user in mind and has a large 8gb memory so it can store large sources of information with the firmware that available with the piece of kit. The instrument meets ISO 8041:2005 standard and is an ideal choice for the measurements according to the European Directive 2002/44/EC.
The SV 103 is typically attached to the user’s arm and is small enough not to interfere with working activities. It works with “Supervisor” software which allows instrument configuration, measurement results viewing and exporting as well as daily vibration exposure recalculation. There is an OLED screen which displays information in both text and graphical form and offers excellent visibility even in full daylight. Advantages like shock resistance, no DC offset effect, very low power and frequency response down to DC are given through the new technology of a MEMS accelerometer. It is powered using rechargeable batteries or through the USB interface which also enables easy connection between the SV 103 and a PC.
Features
Personal Daily Vibration Exposure Meter complying to ISO 8041
Measurement under gloves according to ISO 10819
Triaxial MEMS accelerometer
1/1 or 1/3 octave real-time analysis
Contact force measurement
Time-domain signal recording
Large 8GB memory
USB 2.0 interface
OLED color display with super brightness and contrast
Operational time > 24 hours
Easy in use predefined setups
Extremely compact, light weight and robust case
