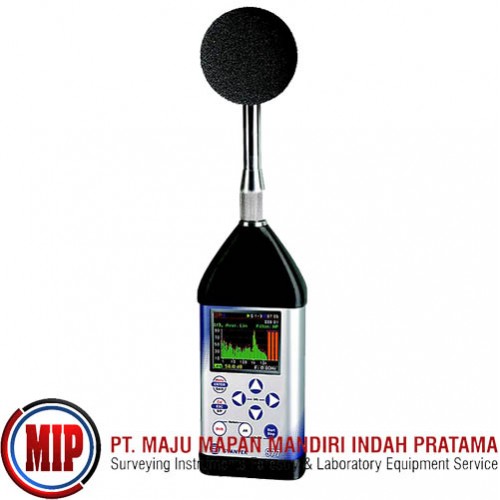

SVANTEK SV977D Portable Sound & Vibration Analyser

SVAN 977 Class 1 Sound & Vibration Level Meter and analyser is designed to meet the needs of both environmental monitoring and occupational health and safety monitoring specialists. Its exceptional hardware design also enables the measurement of ultra sound frequencies in the 40 kHz band.

The SVAN 977 provides broadband results with all the standard weighting filters and also offers an incredible time history logging capability providing broadband results and spectra with adjustable double (long and short) logging steps.
Audio recording can be performed simultaneously with time history logging as either a separate wave file or as audio events inside time history files. This solution enables noise source recognition and data post-processing. Manual and automatic triggering of audio recording is also available. Measurement results are recorded in three acoustic or vibration profiles enabling measurements to be performed with 3 different filters (e.g. A, C, Z) and 3 different detector time constants (e.g. Fast, Slow, Impulse).
Measurement data is stored on a µSD card and can be easily downloaded to a PC using SvanPC++ software over either USB or RS 232 interfaces.

The powerful DSP (digital signal processor) used in the SVAN 977 instrument can simultaneously operate in meter mode and perform real-time 1/1 or 1/3 octave analysis including statistical calculations. Additional functions like real-time FFT analysis and Rotation Speed Measurement are also available.

The highly developed user interface works on networks like GPRS, Ethernet or Wireless LAN for both remote data download and settings configuration. The built-in Bluetooth® interface together with smart-phone application, SvanMobile, extends measurement capabilities with all the features offered by smart-phones including text/voice comments, photo, video, GPS position etc.
The instrument is powered by four AA standard or rechargeable NiMH batteries (separate charger is required), from an external DC power source or USB interface. The robust and light weight design complete the exceptional features of this next generation instrument.

Features
Class 1 IEC 61672:2013 sound level measurements
Ultra sound measurements in 40 kHz band
General vibration measurements (acceleration, velocity and displacement)
Three parallel independent profiles
1/1 octave real-time analysis
1/3 octave real-time analysis (optional)
FFT analysis (optional)
Time-domain signal recording & audio events recording (optional)
Reverberation time measurements (optional)
Advanced Data Logger including spectral analysis
Statistical Level incl. Octavebands
Timer Function
Alarm Function
MicroSD card providing almost unlimited logging capacity
Bluetooth® interface (optional)
USB Host Modem-Interface (optional)
All weather microphone protection kit designed for community and airport noise monitoring (optional)
OLED color display with super brightness and contrast
Hand held, light weight and robust case
Easy to use

Main applications:
Sound measurements
Environmental noise
Occupational noise
Building acoustic
Ultrasound/infrasound
High level/low level noise
Machine vibration
