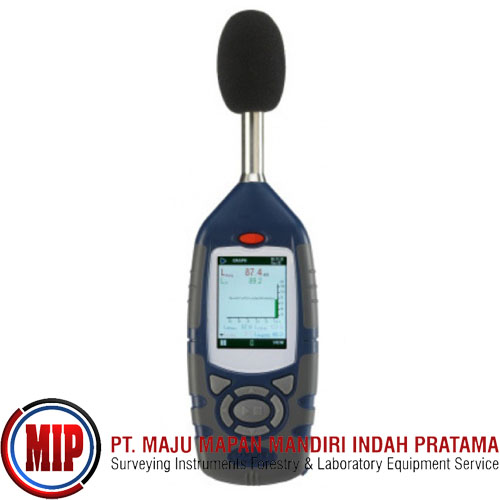

CASELLA CEL620 A Portable Sound Level Meter

Casella’s CEL-620 series of sound analyzers feature powerful dsp processing and a wide measurement range. With the capability to monitor using a single range of 20 to 140 dB, measurements are greatly simplified with no need to change ranges during measurement or predetermine the correct range. Every 620 series sound analyzer features a large color display and is capable of storing up to 100 runs for later review or download to a PC.

The CEL-630 series of sound analyzers are also available and can be ordered with additional logging capabilities.

In addition to providing all the capabilities of a standard sound level meter, the CEL-620 series powerful DSP processor stores all sound data simultaneoulsy every run. There are two models and three options available. The difference between the CEL-620 and CEL-621 is that the CEL-621 provides statistical parameters used for environmental measurements. Each model is available in three versions including the standard ‘A' model which monitors all frequency and time weightings simultaneously, the ‘B' model which adds 11 simultaneous octave bands, and the ‘C' model which adds 33 simultaneous third octave bands.

CEL-620 and CEL-621 sound analyzers are available with microphones for type 1 or type 2 ANSI accuracy. The CEL-620 can be upgraded to a CEL-621 and/or octave bands added at a later date.

Features:
Wide dynamic range from 20 to 140 dB on single span
A,   C   and   Z   simultaneous frequency weightings
Slow,  Fast and Impulse rms.time responses
Large  240  x  320  pixel  color ¼ VGA graphic display
Easy to use menu structure
Integrating capability for time average values
Available in ANSI/IEC class 1 and class 2 accuracy
Available  as  A  version  with broad band levels only
Available  as  B  or  C  version with  real  time  octave  &  1/3 octave   band   filters   plus   3 broad band results A, C & Z
Storage of all results simultaneously   in   a    huge non-volatile memory
Available as complete measurement kits with acoustic calibrator and case

Kits K1:
(1) Acoustic Calibrator
(1) Wrist Strap
(1) Foam Windscreen
(1) USB Cable
(1) Carrying Case
