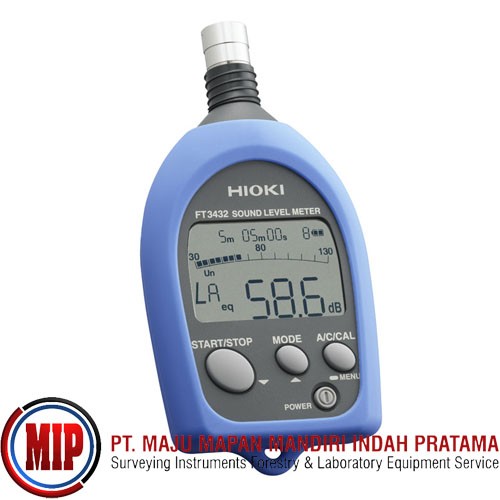

HIOKI FT3432 Portable Sound Level Meter

The FT3432 is used in noise management by facilitating the measurement of noise in factories and schools, near machinery, etc., to ensure a more comfortable environment. Small enough to fit in a pocket and weighing just 105 g, the instrument measures sound level, equivalent continuous sound level, sound exposure level, maximum sound level, and C-weighted peak sound level.

Basic specifications
Applicable standards     IEC 61672-1: 2002 Class 2, JIS C 1509-1:2005 Class2
Measurement functions     Sound level, Equivalent continuous sound level, Sound exposure level, Maximum Sound level, C weighting peak sound level (measurement possible only when peak range is selected)
Measurement times     1/5/10 minutes, or 1 hour
Frequency weighting characteristics     A weighting, or C weighting
Measurement level range     [Wide range] A weighting: 30dB to 130dB, C weighting: 36dB to 130dB
[Peak range] A weighting: 65dB to 130dB, C weighting: 65dB to 130dB
Frequency range     20 Hz to 8000 Hz
Microphone     1/2-inch electret condenser microphone
Time weighting characteristics     Fast or Slow
Output     DC output connector: DC output: 3 V (full scale), 25 mV/dB, Output impedance: 50 Ω
AC monitor output connector: AC output: 1 Vrms +600 mVrms, -400 mVrms (at 110 dB) (Upper limit: 1.8 Vrms), Output impedance: 600 Ω, Frequency weighting characteristics: Z weighting
Power supply     LR03 (AAA) alkaline battery ×2, Continuous use 9 hr at wide range, R03 (AAA) manganese battery ×2, Continuous use 3 hr at wide range, Consumption: 80 mA
Dimensions and mass     63 mm (2.48 in) W × 120 mm (4.72 in) H × 23.5 mm (0.93 in) D, 105 g (3.7 oz), (including batteries)
Accessories     Wind Screen WS-14 ×1, Hand Strap VM-63-017 ×1, Windscreen fall out prevention rubber NL-27-014 ×1, Silicon Cover NL-27-026 ×1, Carrying Case 9757 ×1, LR03 (AAA) alkaline batteries ×2, Instruction manual ×1
