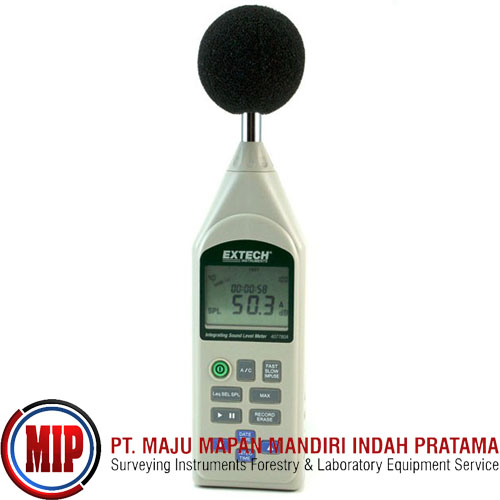

EXTECH 407780A Integrating Sound Level Datalogger

Rp. 65,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Features:
4-digit multifunction LCD with analog bargraph
Precise linearity over wide range (100dB)
Display modes: SPL, SPL MIN/MAX, SEL, and Leq
Programmable integrating time
A and C Frequency weighting
Impulse/Fast/Slow response settings
Datalogging function records up to 32,000 records
Real time calendar/clock
Analog and alarm output features can be used to connect with Frequency analyzers, chart recorders, external dataloggers, and sound level alarms
Built-in USB interface with included Windows® datalogging software
Tripod mount
Meets IEC 61672-1, 60651/60804 Type 2 and ANSI S1.4 Type 2 specifi cations
Complete with windscreen, adjustment screwdriver, USB cable, Windows® compatible software, battery, and case

Specification:
Applicable Standards   IEC 651 And 804 Type 2,ANSI S1.4 Type 2
Accuracy   ±1.5dB (ref 94dB@1KHz)
Bandwidth   0.1dB
Digital Display   4 digital LCD/s
Measurement Parameters   SPL,Leq,SEL,MaxL,MinL
Measurement Range   30dB to 130dB
Linearity Range   100dB
Measurement Frequency Range   31.5Hz to 8KHz
Frequency Weighting   A and C
Response   Impulse,Fast and Slow
Microphone   1/2 " Electret condenser microphone
Sampling time   updated every 0.5s
Bargraph   4dB steps,100dB range,100ms update
Display Warning Function
Overrange Indicator
Underrange Indicator   Displayed at the upper limit
Displayed at the lower limit
Analog AC/DC Output   2Vrms (at full scale),10mVDC/dB
Power Supply   Four 1.5V AA batteries,Optional AC adapter
Battery Life   Approximately 20 hours
Dimensions   10.4x2.8x0.8" (265x72x21mm)
Weight   10.9oz (310g)

What's Included:
(1) Sound level meter
(1) USB cable
(1) Windows compatible software
(1) Windscreen
(4) AA batteries
(1) Carrying case
