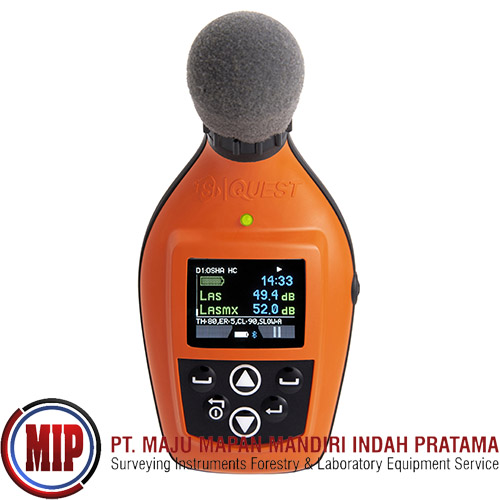

TSI QUEST Edge 8 IS Personal Noise Dosimeter

The TSI Quest Edge 8 Personal Noise Dosimeter is a powerful and intuitive noise dosimeter designed for identifying hearing loss threats and informing the design of Hearing Protection Programs and engineering controls. With its four independent dosimeters, the Edge 8 can be used to simultaneously measure against separate industry standards, all in one compact unit. The 5-pack Edge 8 Kit allows for multiple noise dosimeters to quickly be deployed at the jobsite. The 5-bank charger allows all units in the kit to be charged simultaneously, and the carrying case ensures all accessories are kept together and readily available. The Bluetooth option use the latest BLE5 technology to sync the Quest Edge 8 to the Edge dB mobile app for data viewing and management of the dosimeter at a safe distance from study participants and surrounding hazards. Since Quest Edge 8 carries intrinsic safety approvals from SIRA (ATEX), CSA (US and Canada) and Simtars (IECEx), the instrument may be safely operated in potentially hazardous environments.

Part Number: CONFIGURE OPTIONS
Four Independent Dosimeters: Operates up to 4 simultaneous dosimeters with customizable settings (OSHA, ACGIH), allowing for varied exchange rates (3, 4, or 5 dB).
Intrinsically Safe Design: Certified for hazardous environments with ATEX, CSA, and IECEx approvals.
Bluetooth Connectivity: Uses BLE5 to sync with the Edge dB mobile app for real-time data viewing from a safe distance.
Audio Recording & Voice Notes: Automatically records audio during high noise events and allows users to make voice notes for later data analysis.
1/1 Octave Band Analysis: Provides detailed, high-resolution data to identify specific noise frequencies.
Robust & Ergonomic: Features a durable, shock-resistant rubber overlay and a 1/2-inch MEMS field-replaceable microphone.
High-Visibility Display: A color display designed for easy reading in various lighting conditions.
Applications:
Real-Time Monitoring: View, start, stop, and manage noise surveys wirelessly on a mobile device.
Intrinsically Safe: Certified for use in potentially hazardous, explosive environments.
Data Analysis: Utilizes Detection Management Software (DMS) to log, analyze, and report noise data, helping identify engineering controls and compliance with safety regulations.
Voice Notes & Alerts: Captures voice notes on location and allows for setting custom alerts for dangerous noise levels.
Customization: Offers four customizable user setups for parameters like thresholds, exchange rates, and criterion levels.

Specification:
Battery life: 24 hours nominal without display activated
Battery Charge: Quick charge in EdgeConnect dock in 2 to 4 hours. Daily data download with simultaneous battery charging recommended for maximum efficiency
Microphone: 1/2 inch MEMS field replaceable twist-on microphone
Measuring Range: 60dB - 145dB
Dosimeter: Four independent dosimeters
Weight: 4.16 ounces
Size: 4.86 inch x 2.33 inch x 1.26 inch (123.4 mm x 59.2 mm x 32 mm)
IP Rated: 65
Display: 128x64 color OLED
Datalogging: LAVG or LEQ, Max, Peak and Overload Indication at one minute intervals

Include:
(1) Edge 8 - Noise Dosimeter
(1)  A 1/2-inch MEMS field-replaceable microphone.
(1) Windscreen
(1) Quick Start Guide
(1) Product Manual

Industry Applications
Mining
Oil and Gas and Downstream Refineries
Commercial Construction
Road Construction
Military
Industrial Manufacturing
