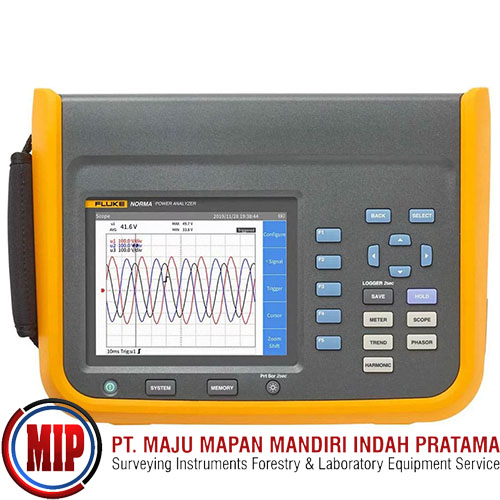

FLUKE NORMA 6004+ Portable Power Analyzer

Fluke Norma 6004 [FLUKE-NORMA 6004+] Portable Wideband Precision Power Analyzer with 4 Voltage Inputs, 4 Current Inputs and 1 Motor Input. The Fluke NORMA 6004+ is a portable power analyzer featuring four channels for simultaneous measurement of three-phase and DC power, including voltage and current inputs on each channel. It boasts high accuracy (0.1%) and wide bandwidth (500 kHz) for reliable power conversion system measurements. It also offers features like mechanical speed and torque measurement, long battery life (up to 10 hours), and various communication interfaces (USB, RS485) for flexible integration.

Part Number: FLUKE-NORMA 6004+
Channel: Four channel
Speed & Torque: With speed & torque
Four Measurement Channels: Enables simultaneous measurement of three-phase and DC power, crucial for inverter efficiency measurements.
High Accuracy and Bandwidth: 0.1% measurement accuracy and 500 kHz bandwidth allow for precise and reliable measurements, even with distorted waveforms.
Portable and Compact: Its compact design and battery power allow for on-site measurements in various locations.
Speed and Torque Measurements: The Fluke NORMA 6004+ model can also measure mechanical parameters like speed and torque, enabling the assessment of electrical-to-mechanical efficiency.
Safety Ratings: Rated for CAT III 1000V and CAT IV 600V environments, ensuring safe operation in various electrical settings.
Communication Interfaces: Features USB and RS485 interfaces for easy system integration and remote control using the Fluke Power Analyzer Software.
Harmonic Analysis: Capable of measuring harmonics up to the 100th order, allowing for detailed analysis of power quality.
Logging and Data Storage: Offers continuous logging of data with adjustable measurement rates and 32GB of onboard storage.
Dual Analyzer Synchronization: Can be combined with another analyzer to enable simultaneous measurement of multiple circuits, increasing troubleshooting capabilities.
User-Friendly Interface: Features an integrated front panel for easy setup and remote control via PC using the Fluke Power Analyzer Software.
Applications:
Inverter Drive Systems: Analyzing performance and efficiency of inverter drives.
DC-AC and AC-DC Power Conversion Systems: Evaluating the performance of power conversion systems.
Electric Motors: Assessing the efficiency and performance of electric motors.
General Power Quality Analysis: Identifying and troubleshooting issues related to power quality.
Field Testing: Making measurements directly at the load in various environments.
Troubleshooting: Identifying and resolving power-related issues in electrical systems.

Include:
(1) Power Supply Adapter (18V DC, CAT IV 600V Adapter)
(1) Power Line Cord
(1) Mains Adapter Set
(3) 1.5m Red Test Leads
(3) 1.5m Black Test Leads
(6) 1.5m Blue Test Leads
(3) Red Alligator Clips
(3) Black Alligator Clips
(6) Blue Alligator Clips
(1) USB (mini B) Cable
(1) RS-485/Synchrony Adapter (3.81mm, Black, 3-pin)
(1) Speed/Torque Adapter (3.81mm, Black, 6-pin)
(1) USB Flash Drive for PC SW and User Manual
(1) Soft Case
(1) Getting Started Manual
(1) Product Warranty Card
(1) Statement of Calibration Practices
