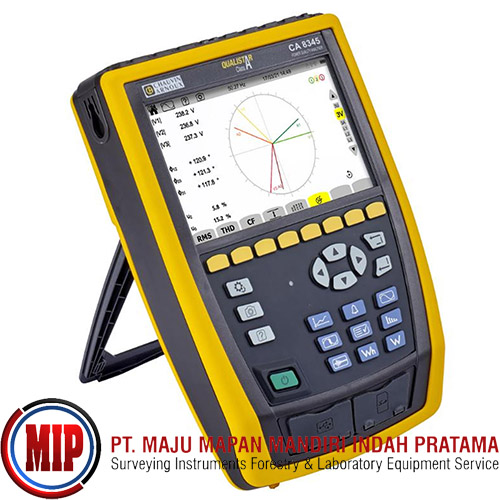

CHAUVIN ARNOUX CA8345 (P0116058) Power Quality Analyzer

The CA 8345 is a Class A Qualistar power and energy quality analyser.
Like the Qualistar+ models, it is equipped with an intuitive HMI and remains simple to use. Multilingual online help can be displayed at any time on the large colour LCD touch screen.Easy to handle, it is intended for inspection and maintenance teams working on industrial or tertiary installations. It can be used to obtain a snapshot of the electrical network's main quality features. The Qualistar model scan be used on all types of installations.

For greater safety, the CA 8345 automatically recognizes the type of current sensor connected. The CA 8345 ensures high measurement accuracy. It provides a large number of calculated values and several processing functions. It offers users all the measurements needed to successfully handle energy efficiency projects and monitor the electrical distribution network. By calculating the cost of the electricity, you can immediately determine the value of the electricity consumed.

It can display the harmonics and interharmonics as stipulated by IEC 61000-4-7. At the same time, it detects the carrier currents flowing on the installation.

The CA 8345 monitors all the events on the network:
Trend diagram, variations of the signal parameters
Parameterizable alarms, with the possibility of sending an email alert to the user
2.5 µs transients
12 kV shockwaves lasting 500 ns
TrueInrush to capture all the load start-ups….

Features:
A power and energy analyser fully compliant with IEC 61000-4-30 Class A Edition 3
Ideal for inspection and maintenance teams working on industrial and/or tertiary installations
Offers a snapshot of the main electrical network quality features
Suitable for monitoring all types of installations (three-phase, Aron connections, etc)
Takes all DC components into account
Harmonics (amplitude and phase shift) from DC to the 63rd order
Inter-harmonics subgroups from 0 to the 62nd order
Two carrier current frequencies
P, N, Q1, S, and D power values (total and per phase)
Energy values (total and per phase) with energy valuation
Voltage quality diagnostics
Internal GPS for precise UTC synchronisation (NTP is also possible)
Supports configurable alarms for multiple parameters
K factor and FHL
Distorting voltages and currents
Displacement power factor (DPF) and power factor (PF)
Pst and Plt flicker and sliding Pst
Unbalance (current and voltage)
Waveform Inrush (10-minute duration)
RMS and Peak Inrush (30-minute duration)
Hundreds of parameter readings are recorded to the removable SD card
Trend recording
Trend recording period from 200ms to 2hrs
Fast transient events are captured and their characteristics saved to the analyser’s memory
Captures hundreds of 2.5µs transients
Captures shockwaves up to 12kV with a resolution of 500ns
USB, Ethernet, and Wi-Fi interfaces
Software for real-time data recovery and PC communication
Webserver for remote interface with Android, Microsoft, and iOS apps
Screenshot function
Real-time display of waveforms (4 voltage and 4 current)
Displays phasor diagrams
Wide, 7”, touchscreen, colour LCD
Easy to use
Intuitive
Supported by multilingual online help
Multiple user profiles
Automatic recognition of different current sensors
5x 50Hz/60Hz voltage inputs
DC current power supply
55mm-thick, IP54-rated casing with stand
Measurement terminal strip with isolated inputs
RJ45 connector
IEC 61010 CAT IV 1000V
An easy-to-use, ergonomic, and accurate power and energy analyser

Include:
(1) Chauvin Arnoux CA8345 Qualistar Class A Power Quality Analyser
(5) Reeling Boxes
(1) Shoulder Bag
(1) USB A/B Cable (1.8m)
(1) Set of 5 Banana Leads and Crocodile Clips
(1) Set of Identification Inserts and Rings
(1) Removable Wrist Strap
(1) Magnetic Hook
(1) SD Memory Card
(1) PA32ER Mains Power Supply/Charger
(1) Safety Datasheet
(1) Verification Certificate
