PCE 360 Power Quality Analyzer Clamp Meter With Data Logger
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

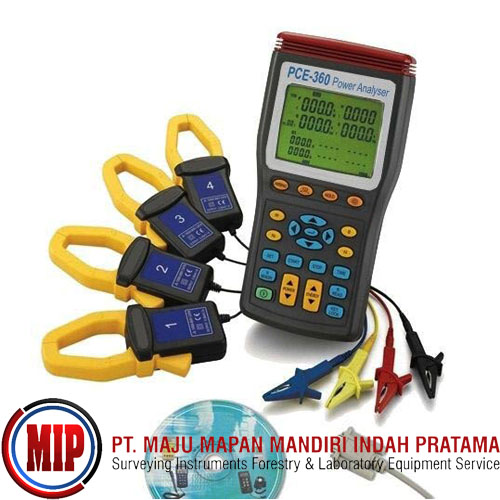

PCE-360 Clamp Meter Power-analyzing clamp meter with data logger functionality / Includes clamps, clips, leads, PC software and data cable.
The PCE-360 is a Clamp Meter with data logger functionality. This versatile power analyzer can take single-phase and three-phase power measurements both in real time and over an extended time period. The PCE-360 is used for the analysis of voltage (V), current (A), active power (kW), apparent power (kVA), reactive power (kVar), power factor (cos Φ), phase angle (Φ), frequency (Hz), rotary field (UL > 50V), active energy (MWh), apparent energy (MVAh), reactive energy (MVArh), harmonics (1 ... 63 order, via software), and waveforms (via software).
The meter's large and easy-to-read screen displays up to 10 measurements simultaneously. In manual mode, the device stores up to 99 measurements directly. In data logger mode, the device stores up to 20,000 sets of measurements to the 4 GB internal memory. Measured values are transferred easily to a PC using the included Windows-compatible software and data cable. In addition, four current clamps, four alligator clips, and four measuring leads are included in the delivery contents.
Features:
For measurement in real time and over an extended time period
Includes clamps, clips, leads, PC software and data cable
Large, easy-to-read screen displays up to 10 measurements simultaneously
Stores up to 99 measurements directly in manual mode or up to 20,000 sets of measurements to
the 4 GB internal memory in data logger mode
For analysis of voltage (V), current (A), active power (kW), apparent power (kVA), reactive power (kVar),
power factor (cos Φ), phase angle (Φ), frequency (Hz), rotary field (UL > 50V), active energy (MWh), apparent
energy (MVAh), reactive energy (MVArh), harmonics (1 ... 63 order, via software) and waveforms (via software)
Battery-saving automatic shutdown after approximately 30 minutes of inactivity
Device comes factory calibrated - optional ISO calibration certificate available for an additional
fee (see accessories for details)
What's In The Box:
(1) PCE-360 Clamp Meter
(4) Current clamps
(4) Measuring leads
(4) Alligator clips
(8) 1.5 V AA batteries
(1) Power adapter
(1) USB cable
(1) PC software CD-ROM
(1) User manual
(1) Carrying case
