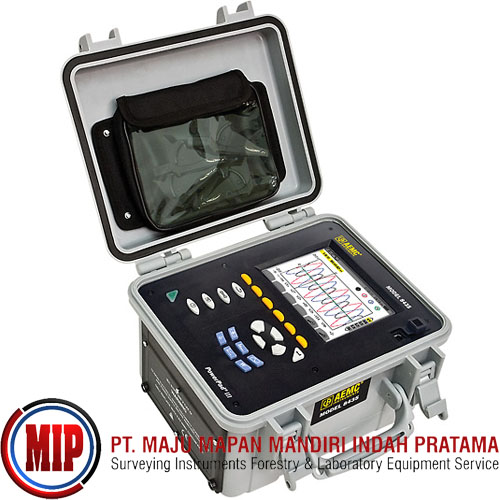

AEMC 8435 (2136.42) PowerPad III Three-Phase Power Quality Analyzer
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The AEMC PowerPad III Model 8435 w/4 A196-18-BK AmpFlex is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. The AEMC 8435W4A19618BK enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Four voltage input terminals and four current input terminals are provided. The AEMC 8435-W4-A19618-BK is IP67 waterproof rated when recording with cover closed.
The AEMC 8435W4A19618BK has 2GB of memory available for storing trend data. Additional internal memory is conveniently partitioned to let the user store alarms, transients, inrush and snapshot data synchronized or independent of each other. The user can store up to 50 screen snapshots, up to 210 captured transients that contain four cycles for each active input, and 10,000 alarm events from up to 40 different parameters. Trend data can also be recorded for days, weeks or even months. Inrush current can also be captured and stored on the AEMC 8435 W4/A196-18-BK.
Applications
Verification of power distribution circuits
Pole mounting
In-plant troubleshooting of power distribution panels and individual machinery
Monitor pad mount transformers and phase unbalances
Determine harmonic problems originating from source or load
Determine transformer K-Factor
Energy metering (kVAh, VARh, kWh)
Features:
Measurement of TRMS voltages up to 1000Vrms AC/DC for two-, three-, four- or five-wire systems
Measurement of TRMS currents up to 10kArms (sensor dependent)
Direct measurement of neutral current and voltage
Frequency measurement (40 to 70Hz systems)
Records and displays trend data as fast as once per second for one month up to 25 variables
Captures up to 210 transient occurrences on all V and A inputs
Measures harmonics (referenced to the fundamental or RMS value) for voltage, current or power up to the 50th harmonic
Recording, time stamping and characterization of disturbance (swells, sages and interruptions, exceedence of power and harmonic thresholds)
2GB SD Card for Trend Recording memory; Alarm, Snapshot, Transient and Inrush stored in internal flash memory
Measures energy VAh, VARh & Wh
65µs/sample transient recording
FREE DataView® software is included for configuring real-time display and report generation
What's in the Box:
(1) Extra Large Tool Bag
(1) Accessory Pouch
(1) 5 ft USB Cable
(5) 10 ft Black Voltage Leads with Alligator Clips
(1) 110V US Power Cord
(4) Water-Tight AmpFlex A196-18-BK Probes
(1) NiMH Battery
(1) SD-Card (2GB)
(12) Color-coded Input ID Markers
(1) Quick Start Guide
(1) User manual (USB stick)
(1) DataView software
