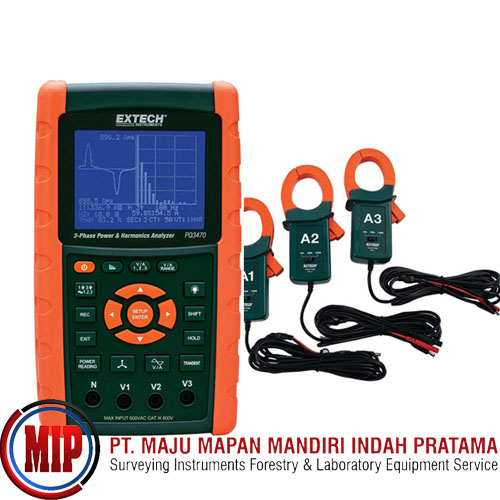

EXTECH PQ3470-12 1200A 3 Phase Power Analyzer Datalogger

3-Phase Graphical Power & Harmonics Analyzer/Datalogger saves up to 30,000 readings on an SD card in Excel® format for easy transfer to a PC for analysis. It features a large dot-matrix, sun-readable, graphical, backlit LCD with full system analysis of up to 35 parameters including: V (phase-to-phase), V (phase-to-ground), A (phase-to-ground), KW / KVA / KVAR / PF (phase), KW / KVA / KVAR / PF (system), KWH / KVAH / KVARH / PFH (system), and Phase angle. Additional features include Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems, on-screen Harmonics display (1 to 50th order), simultaneous display of Harmonics and Waveform, display of Waveform with peak values, analysis of Total Harmonic Distortion (THD), Graphic Phase diagram with 3-Phase system parameters, 3-phase Voltage or Current Unbalanced Ratio (VUR, AUR) and unbalanced factor, a wide sampling rate from 2 seconds to 2 hours, a built-in Clock and Calendar, and an easy-to-use onscreen menu. You can also capture Transient events (including dip, swell, and outage) with programmable threshold (%). Meter comes complete with 4 voltage leads with alligator clips, 8 AA batteries, SD memory card, Universal AC adaptor (100 to 240V), and case. Clamp probes sold separately. Choose the best clamp probes to fit your application needs ranging from 200A to 3000A and flexible vs traditional jaw type.

Features:
Large dot-matrix, sun-readable, graphical, backlit LCD
Full system analysis with up to 35 parameters
Log up to 30,000 reading on a removable SD memory card in Microsoft Excel format
On-screen Harmonics display (1 to 50th order) with simultaneous display of Harmonics and Waveform

What's in the Box:
(1) PQ3470
(1) 1200A Current Clamp Probes (Set Of 3)
(8) AA batteries
(4) Voltage leads with alligator clips
(1) SD card
(1) 100-240V AC adaptor
(1) Case
