SEBA Hydrometrie F1 With 50 Meter Cable Universal Current Meter

SEBA Hydrometrie F1 With 50 Meter Cable Universal Current Meter

Rp. 225,000,000
NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Features:
Extremely robust current meter for all flow velocities
Made of high quality non corrosive steel
Nearly wattless and frictionless contact making
Modular system
Operation possible on rod or as suspended current meter at SEBA-cable way installation, measurement trailer, measurement car or with mobile bridge jib

For mobile velocity measurements, especially suitable for: waters with problems of fouling by weed or dirt, sewage channels, waters with extremely low or high current velocity

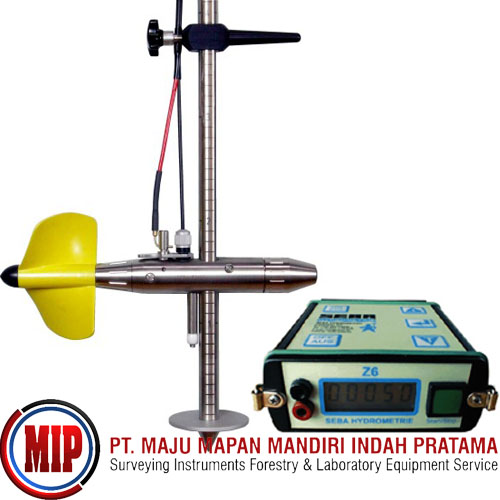

The SEBA - Universal Current Meter F1 serves for determination of current velocities in water courses, canals, rivers and the sea, for use with rods or as cable-suspended meter equipment from 0, 025 m/ s up to 10. The SEBA-Universal Current Meter F1 serves for use on rods as well as for cable-suspended- current meter equipments for use with SEBA single drum winches or cable way installations.The streamlined meterbody and the axle are manufactured of high-quality, non-corrosive steel. The hub of the propeller is filled with oil and rotating in two special ball-bearings. The oil filling and a capillary seal protects against water entry. A base stop prevents the propeller from striking the ground. One signal is generated from each revolution of the propeller by means of a permanent magnet. Frictionless operation increases the sensitivity of the instrument. The contact mechanism is quickly interchangeable without problems. Instrument case Robust version made of aluminium, lockable, with three cover hinges, cover- and base plate made of resistent black ABS plastic. Dimensions: standard with compartment for counter 465 x 340 x 140 mm. Weight: case including equipment approx. 6 kg.

Complette Package:
(1) F1 170 SEBA universal current meter F1
(1) F1 17001 meterbody made of non corrosive steel, with watertight contact mechanism
(1) F1 17025 incl. ground stop for propeller Ø 125 mm or 80 mm
(1) F1 17026 incl. standard accessories without instrument case (oil, tools and spare parts)
(1) F1 17005 Plastic propeller (velocity range: 0,025 - 10,0 m/s; specification: Ø 125 mm, pitch 300 mm)
(1) F1 17004 Plastic propeller (velocity range: 0,025 - 10,0 m/s; specification: Ø 80 mm, pitch 300 mm)
(1) F1 17018 Standard calibration on rod Ø 20 mm
(1) F1 17019 Velocity table for standard calibration
(1) F1 17024 Ground stop short for propeller Ø 80 mm
(1) F1 17047 Rod Ø 20 mm, 3 m long, 3 sections (with dm-graduation and dm-numbering incl. point and detachable base plate)
(1) F1 17055 relocating device for rod Ø 20 mm 2 m long, 2 sections
(1) F1 1704804-10 extension of rod, per m
(1) F1 17028 connection cable 4 m round cable, 2 cores with plugs
(1) F1 17054 direction indicator for rod Ø 20 mm
(1) F1 17058 Canvas bag with carrying strap for storage and transport of rods and relocating device
(1) F1 17027 Instrument case
(1) F1 19901 SEBA signal counter Z6
