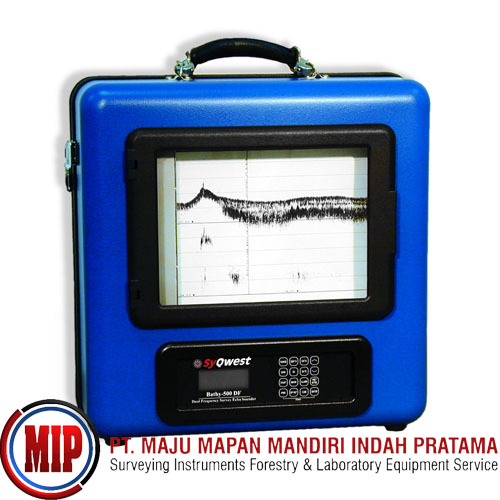

SYQWEST Bathy 500HD Dual Frequency Survey Echosounder
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The Bathy-500HD is a state-of-the-art electronic survey instrument used to generate precision chart recordings and digital data output. Low power consumption, portability, ease of use, rugged construction, and built-in communication interfaces for navigation/ data logging devices make the Bathy-500DF ideal for shipboard
use. The instrument is housed within a splash-proof, aluminum enclosure. The Bathy-500DF is technologically sophisticated, utilizing modern, microprocessor-
based electronics and a thermal chart recorder mechanism. Digital processing enables the instrument to offer fully automatic bottom digitizing capabilities. When interfaced to a NMEA 0183-compatible position sensor, the Bathy-500DF provides the user with a complete, integrated hydrographic survey environment.
Front Panel Interface The instrument front panel consists of a high contrast, backlit four-line ( 16 characters per line) LCD display, and a fully-sealed input keypad.
All operating parameters are at the user’ s fingertips, with immediate selection feedback provided via the LCD display. LCD display menu pages encompassing
system data, status, and setup parameters are provided for each of the following:
Features:
Interleaved Dual Frequency Operation Compatible with Hypack™ and HydroPro™ Software Processing Packages
Thermal Recorder
Depth Resolution 1cm
LCD Display; RS232/422 Output
External Programmable Annotation
GPS/NAV Integration; NMEA 0183 Input
Menu Selectable Frequencies of Operation
Power 11-30VDC, 115/230V, 50/60Hz, < 40watts
Standard Configuration:
Bathy-500HD Survey Echo Sounder
AC Power Cable
DC Power Cable
MF Data I/O Plug Kit
Spare Fuse Kit
Chart Paper Kit
Operators Manual
P01740- 33/210 kHz (23/8deg.) Transducer w/diplexer (with plug)Cast urethane- for portable mounting.
Optional Transducers:
Single Frequency Transducers: 33kHz, 40kHz, 50kHz, 200kHz
Dual Frequency Transducers: 33/210kHz, 50/210kHz
