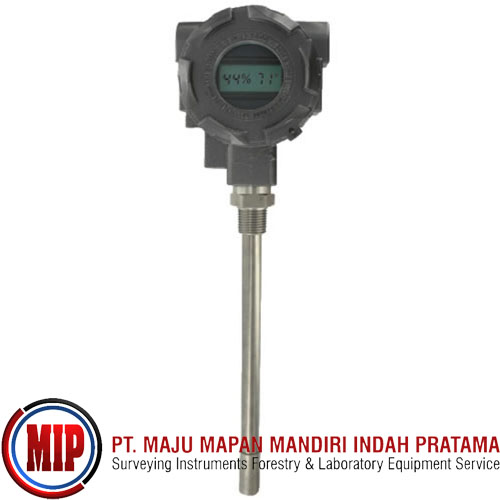

DWYER HHT-EU-LCD Explosion-Proof Humidity Transmitter with Display
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The Dwyer HHT Hazardous Area Humidity/Temperature Transmitter takes accurate measurements in the harshest of environments. The transmitter is offered in explosion-proof and intrinsically-safe versions depending on the application's requirements. The explosion-proof model is offered with 4 to 20 mA output for humidity only. The intrinsically-safe version is offered with 4 to 20 mA output for humidity and temperature. Both versions have an optional two line alphanumeric display to show the current humidity and temperature.
The Series HHT humidity/temperature transmitter is excellent for offshore HVAC applications, dust and grain applications. Intrinsically safe models require an intrinsically safe barrier.
Features:
Relative Humidity Range: 0 to 100% RH
Temperature Range: -40 to 140°F (-40 to 60°C)
Accuracy: ±2% 10-90% RH, ±0.9°F at 72°F (±0.3°C at 25°C)
Repeatability: ±0.1% typical
Temperature compensated over entire range
4-20 mA output, 2 channels for humidity/temperature models (loop power on RH)
Screw terminal block electrical connection
Conduit Connection: 1/2" female NPT
Capacitance polymer RH sensor
Solid state band gap temperature sensor
Aluminum housing
Optional 2 line alpha numeric display
CE, FM approved
NEMA 4X (IP66) rated enclosure
Approvals:
HHT-EX: FM Explosion-proof, Class I Div. 1 Group B, C, D, Class II Div. 1 Group E, F, G, Class III Div. 1
HHT-IX: FM Intrinsically Safe, Class I Div. 1 Group A, B, C, D, Class II Div. 1 Group E, F, G, Class III Div. 1 T4
What's In The Box:
(1) Dwyer HHT [HHT-EU] Explosion-proof humidity transmitter without Display
(1) User manual
