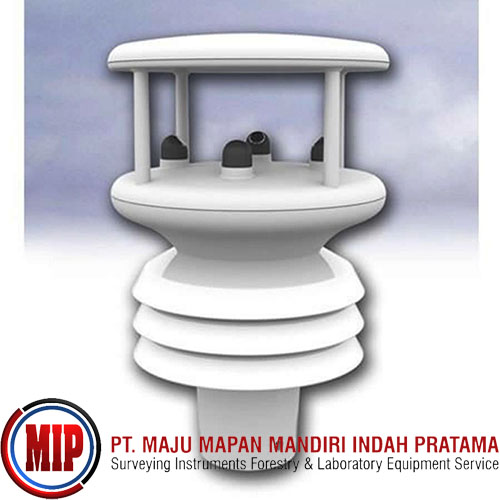

COLUMBIA Magellan Weather Station

COLUMBIA Magellan Weather Station

Rp. 188,500,000
NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

For cutting-edge weather monitoring in a harsh environment, the Magellan Weather  Station combines a rugged multi-parameter weather sensor with an internal compass for automatic wind direction alignment. The all-in-one Magellan sensor module integrates:
a sonic anemometer for wind speed measurement
multi-element sensor for highly accurate and stable temperature readings
fast-response, capacitive relative humidity sensor
state-of-the-art barometric pressure sensor
internal fluxgate compass for automatic alignment of wind direction
A tipping bucket rain gauge is an optional accessory.  Weather monitoring options include WeatherMaster™ Software, the Weather Display
Console, and the Weather MicroServer™ for internet-ready weather data and industrial protocols.

Features:
Weather-protected sensor unit designed for maximum portability and utility
Integrated sonic wind sensor
Automatic self-alignment using internal fluxgate compass
Rugged metal construction for rapid deployment in demanding applications
No mechanical components means virtually no maintenance
Low power consumption – ideal for battery or solar-powered installations

Includes:
(1) Magellan Sensor Transmitter
(1) 50 ft sensor cable + additional cable length if ordered
(1)  Interface Module
(2) 3-position terminal blocks
(1) Interface module power supply
(1) User Manual
(1) 7-foot RS-232 cable + additional cable length if ordered
(1) WeatherMaster Software, with User Manual
(1)Weather Display Console
(1) 19" Rack Mount

Specifications:
Temperature:Range: -40 to +60°C (-40 to +140°F); Accuracy: ±0.2°C (0 to 60°C);±0.5°C (-40 to 0°C); Resolution: 0.1°C (0.1°F); Operating Temperature: -50 to +70°C
Barometric Pressure: Range: 17.50 to 32.50 InHg (600 to 1100 hPa); Accuracy: ±0.5 hPa (at 25°C);Resolution: 0.1 hPa
Wind Speed: Range: 0-134mph (0-60 m/s); Accuracy: +/-0.5 m/s or 5% of reading; Resolution: 0.2 mph (0.1 m/s)
Wind Direction:Range: 0 to 360°; Accuracy: ± 5° at wind speed > 2.2 m/s; Resolution: 1.0°.
Relative Humidity: Range: 0 to 100%;Accuracy: ±3% at 25°C; Resolution: 1.0%
Compass: Accuracy: ±2°; Resolution: 1°
Optional Tipping Bucket Rain Gauge: Accuracy: ±1% at 2 in./hr or less; Resolution: 0.01 inch
Physical: Materials: Anodized aluminum and stainless;steel with white gloss powder coat;Weight: 0.91 kg (2.0 lbs) Mounting: Accepts 1” (25.4mm) OD pole.
